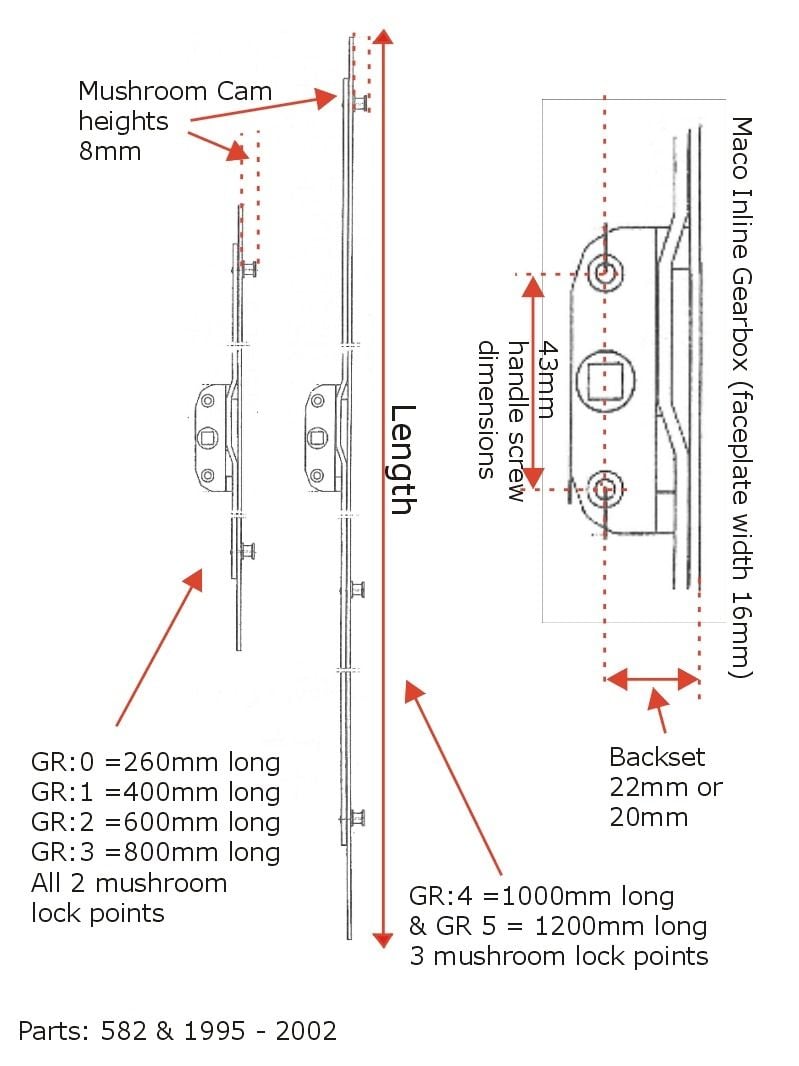

- Backset: 20mm & 22mm
- Gearbox Mounted: Inline
- Faceplate: 16mm Flat

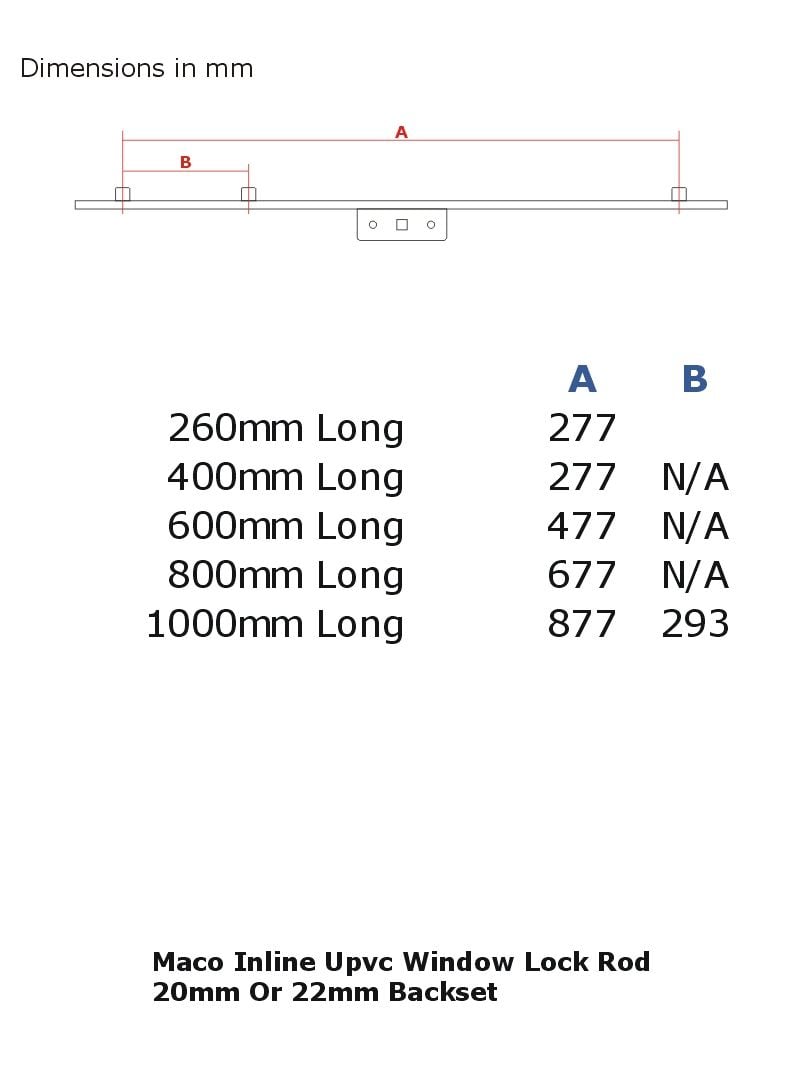

- Length: 400mm to 1200mm
- Locking Point Type: Mushroom 7.7mm high
- Number of Locking Points: GR1, GR2 & GR3 = 2 GR4 & GR5 = 3
- The new lock cams have a Allen key hole in them which when you turn it will move the cams in and out approx 1-2mm to adjust the window compression
- The gearboxes are stamped Maco BS22 ( = 22mmbackset) or alternatively Maco BS20 (= 20mm backset)
- N:B all Maco window locks are now silver plated finish to meet the band chemicals legislation once used to create the yellow chromated finish
